Product Introduction

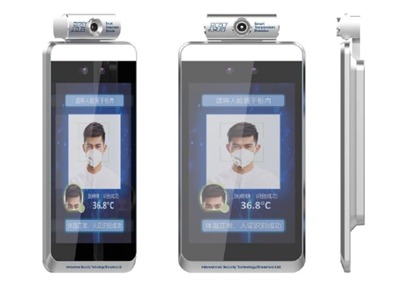

IST-SS-TDT1 Smart Temperature Detector with Face Recognition Module, adopting RK3288quad core high-performance hardware, equipped with industrial-level binocular camera and face liveness detection technology, as well as infrared thermal imaging module, supporting mask recognition, can be applied to the eGate and access control system to achieve a safer and high-efficient access control.
Product features
l Adopting the 8-inch IPS full-view LCD display.
l Support OS Android 7.1
l Industrial-grade appearance design, stable and reliable.
l Supports 3W Facial Library. 1:1 recognition rate ≥99.7%, 1:N recognition rate ≥ 96.7% ±0.1%, live detection accuracy rate 98.3% ± 1% . Face recognition speed≤1 second.
l Supports facial recognition with a mask.
l Adopting industrial-grade binocular wide dynamic camera, night infrared, with dual- LED lights.
l Supports the RK3288 quad-core processor with a strong performance.
l Support body temperature detection and the temperature display, with the optimum temperature detection distance of 0.5 meters and the farthest 1 meter, ±0.5℃, and support automatic alarm in case of abnormal body temperature, and support the real-time export of the attendance temperature data.

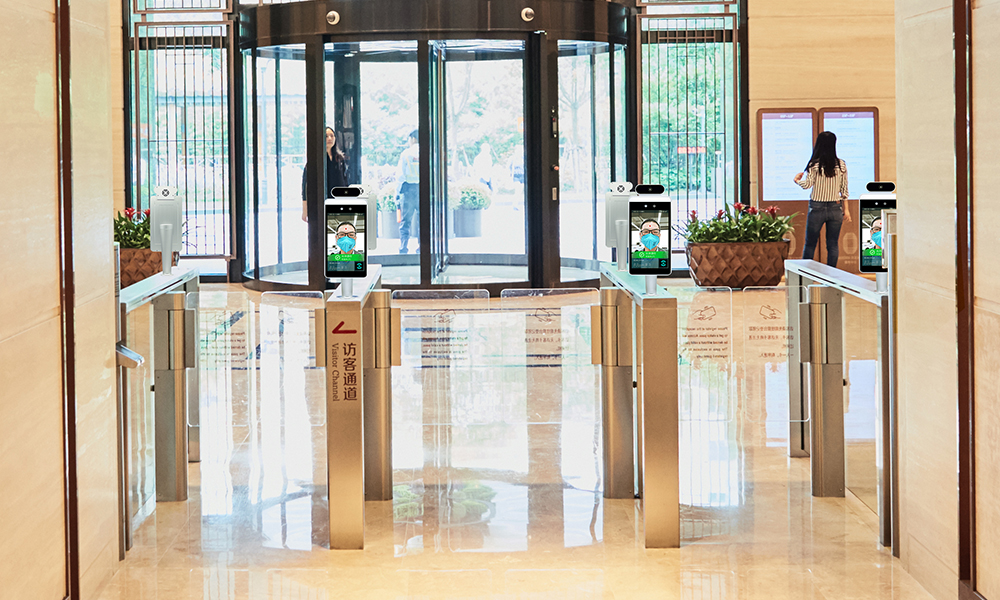

Scenario
The module could apply with the access gates and access controls in the communities, office buildings, schools, hotels, scenic spots, transportation hubs and other public service locations.
Technical Parameters
|
|
Model No |
IST-SS-TDT1 |
|
Camera
|
Resolution |
200W pixel |
|
Type |
Binocular wide dynamic camera |
|
|
Aperture |
F2.4 |
|
|
Focus distance |
50-150cm |
|
|
White balance |
Automatic |
|
|
Fill light |
LED and dual infrared light |
|
|
Screen
|
Size |
8.0″ LCD Screen |
|
Resolution |
800 x 1280 |
|
|
Touch function |
N/A (support touch function as an option) |
|
|
Processor
|
CPU |
RK3288 quad core |
|
Local Storage |
EMMC 8G |
|
|
Interface
|
Network Module |
Support Ethernet, wireless (WIFI) |
|
Audio |
support 2.5W/4R speaker |
|
|
USB Interface |
1 * USB OTG, 1*USB HOST standard A port |
|
|
Serial Communication Interface |
1 * RS232 serial port |
|
|
Relay Output |
1 * Open signal output |
|
|
Wiegand Interface |
1* Wiegand 26/34 output, 1* Wiegand 26/34 input |
|
|
Upgrade Button |
Support Uboot Upgrade Button |
|
|
Wired Network Interface |
1* RJ45 Ethernet socket |
|
|
Function
|
Reader |
N/A |
|
Face Detection |
Support multi people detection and tracking simultaneously |
|
|
Face Library |
up to 30,000 |
|
|
1:N Face Recognition |
Support |
|
|
1:1 Face Verification |
Support |
|
|
Stranger Detection |
Support |
|
|
Recognition Distance Configuration |
Support |
|
|
UI Interface Configuration |
Support |
|
|
Device Remote Upgrade |
Support |
|
|
Device Interfaces |
including device management, personnel/photo management, record query and etc. |
|
|
Infrared Thermal Imaging Module
|
Body Temperature Detection |
Support |
|
Temperature Detection Distance |
0.5 – 0.9 m |
|
|
Temperature Detection Accuracy |
≤ ±0.3℃ |
|
|
Temperature Detection Range |
10℃~42℃ |
|
|
Thermal Imaging Field of View |
32 X 32℃ |
|
|
Direct Release of Visitors with normal body temperature |
Support |
|
|
alarm support if visitors with abnormal body temperature |
alarm support (body temperature alarm figure could be set) |
|
|
General Parameters
|
Power |
DC12V（±10%） |
|
Operating temperature |
0℃~60℃ |
|
|
Working environment |
In door and windless |
|
|
Consumption |
13.5W (Max) |
|
|
Installation Method |
With Wall mount bracket, Table mount bracket, Gate mount bracket |
|
|
Size |
274.24*128*21.48 (mm) |
|
|
Weight |
1.45kg |
